Light Conversion Pharos PH2-SP-10W-1mJ

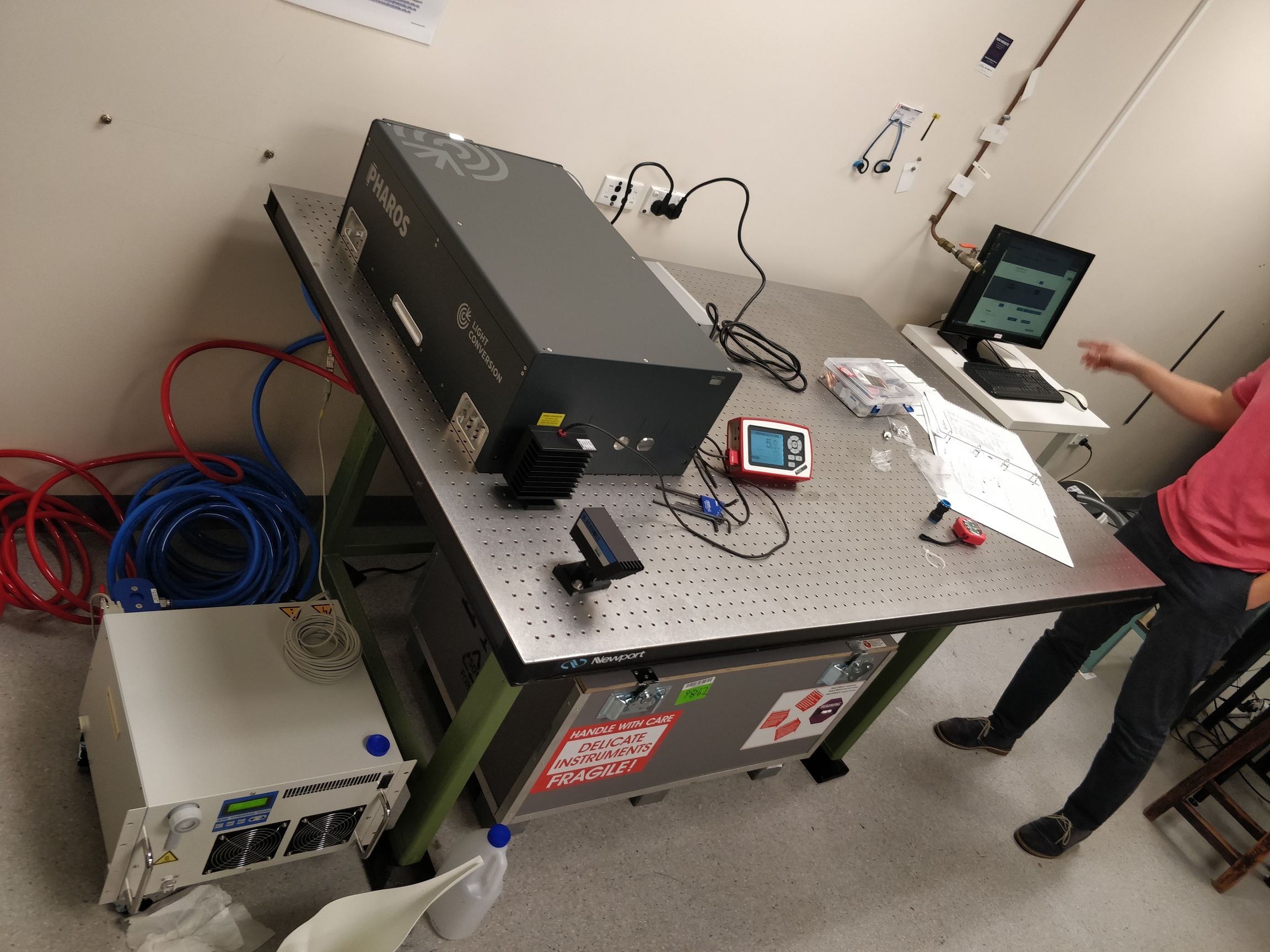

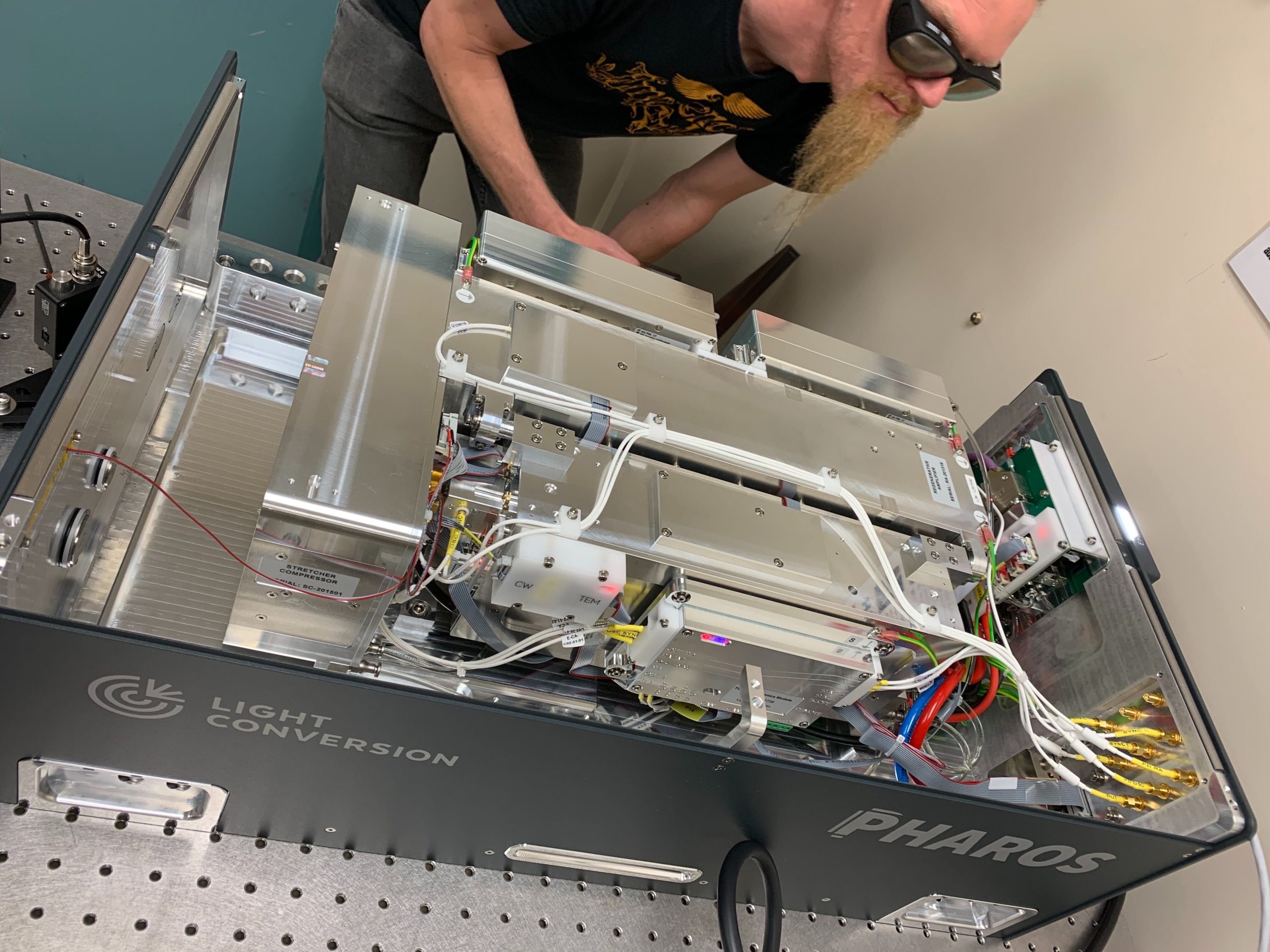

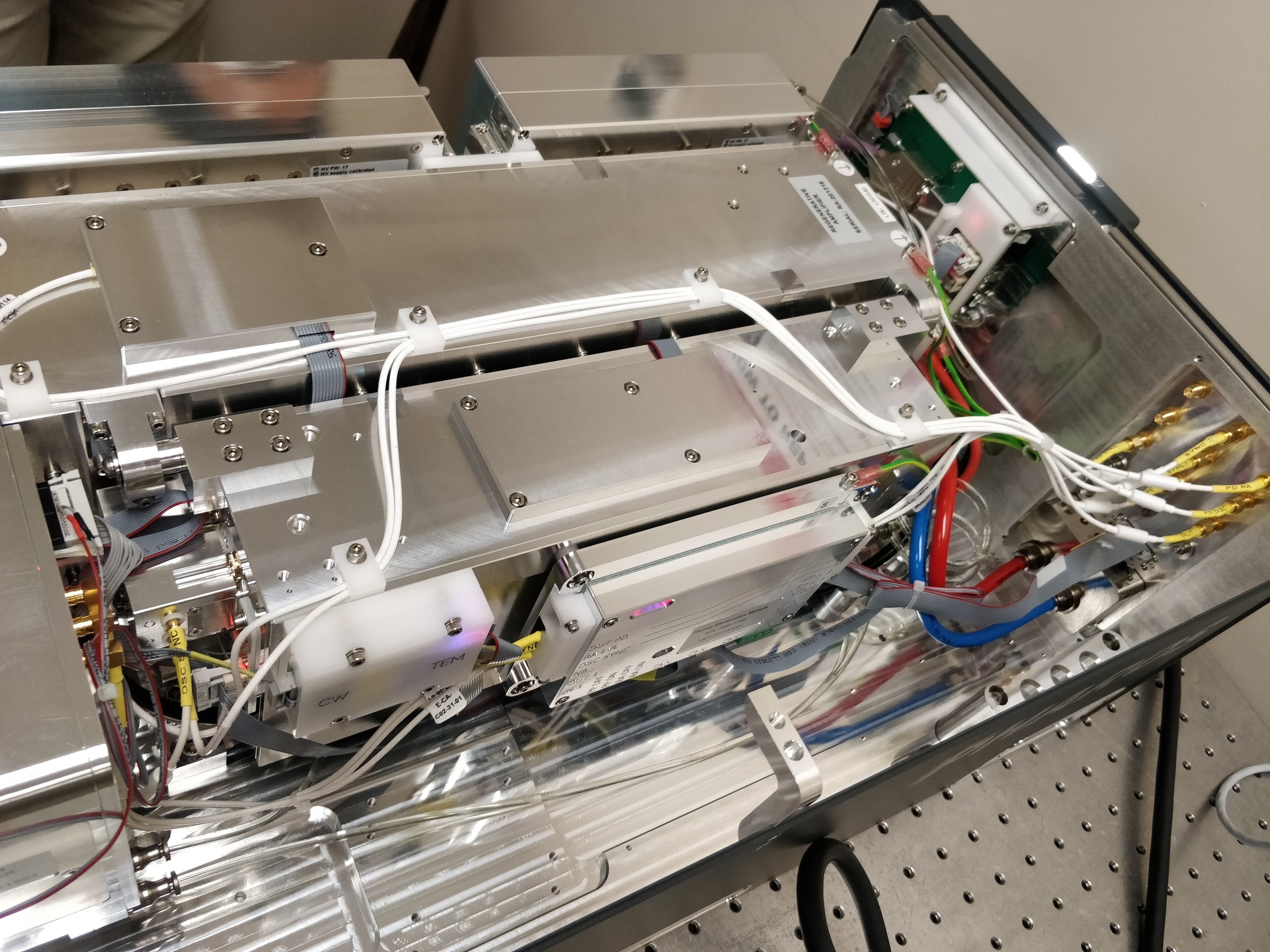

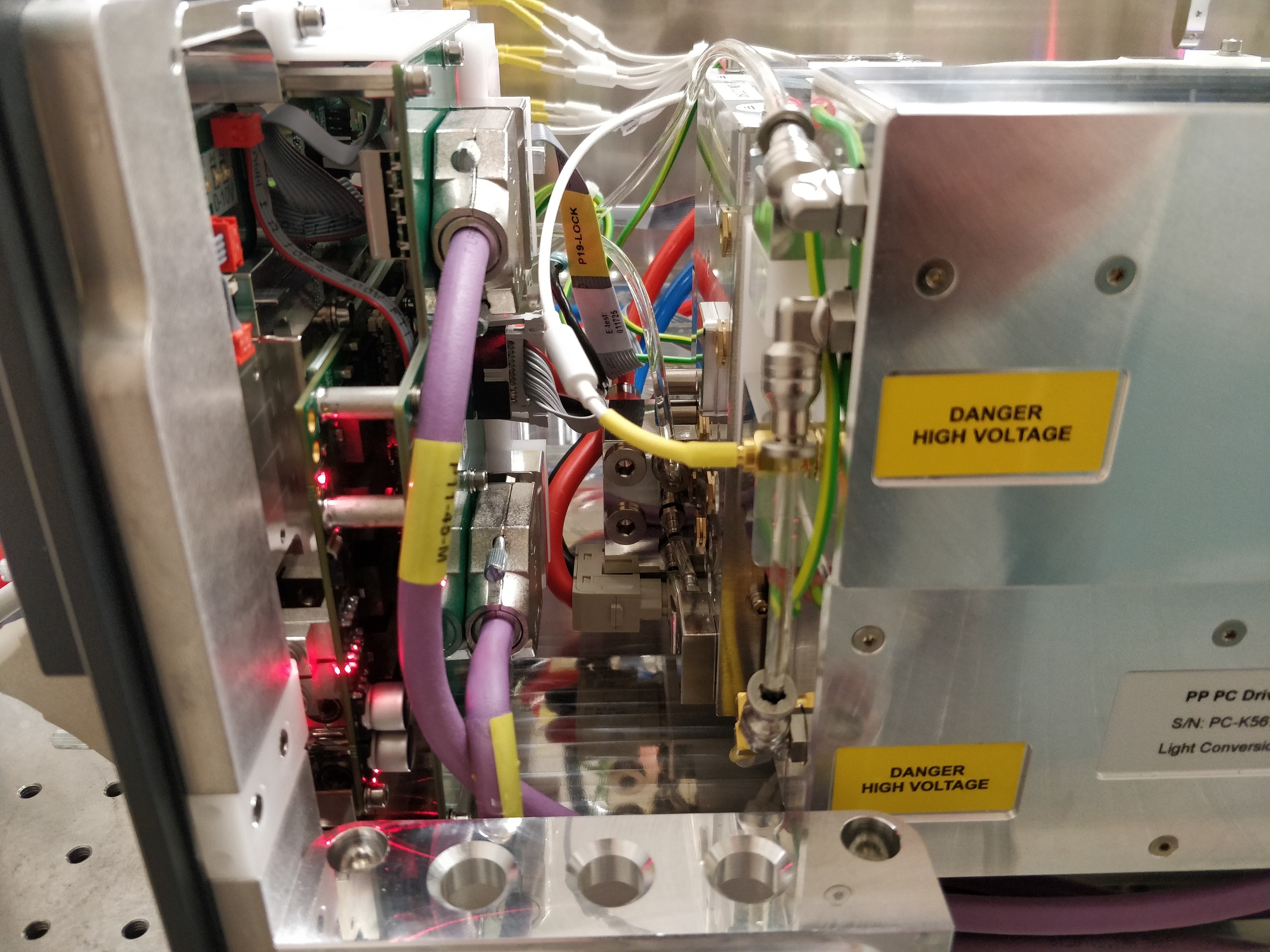

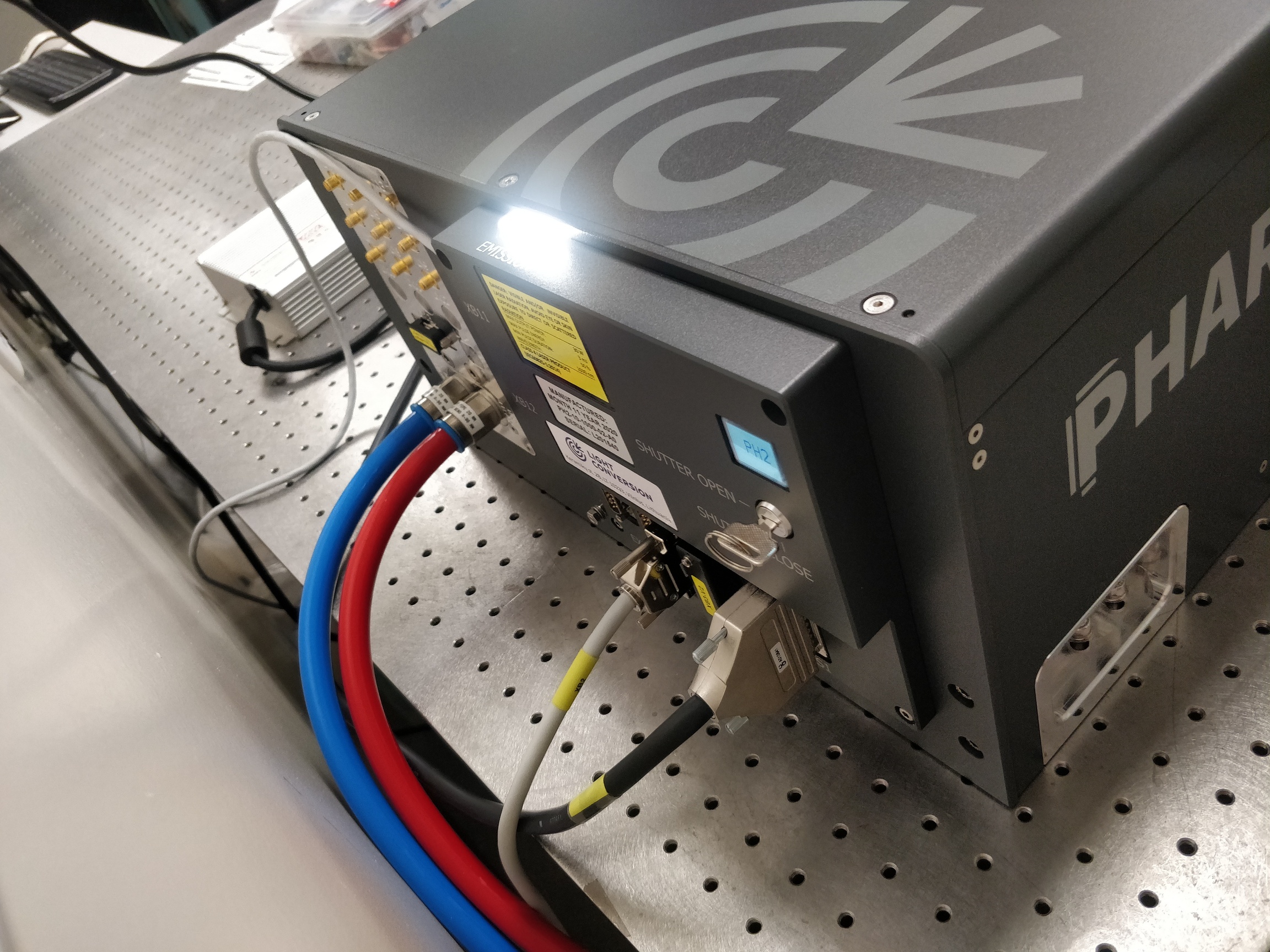

A brand new Pharos laser was installed in the University of Adelaide femto lab today. It’s a pretty nice looking piece of gear manufactured by Light Conversion, and this particular model is so new it’s not even listed on their website at this moment. It emits 10 watts of 1030 nm, with a pulse duration of ~160 fs at a configurable repetition rate of up to 200 kHz.

Mirage Photonics MFL-3500

Here’s a quick peek at a project for Mirage Photonics, which is a control interface for their mid-infrared laser system. The laser can be controlled via an Android app or standard web browser interface.

Controlling the MFL-3500 laser via an Android app.
Controlling the laser by a web browser interface.

Power supply replacement for Spectra-Physics Millennia Prime J80

Our Millennia Prime stopped working, tripping the circuit breakers. I’m hoping it’s just power supply issues, and it’s out of warranty, so let’s take a look. Just don’t think about how much this thing costs…

The Spectra-Physics J80 laser diode pump for the Millennia Prime unit, minus top panel.

Getting to the power supply unit doesn’t look like fun… It is mounted on the bottom left, underneath a couple of layers of circuitry. At this point it’s impossible to even see what sort of unit it is.

Let’s fast forward through the disassembly and see what it is. This is somewhat awkward and time consuming, but not hard once you know how. (Follow in reverse to see how to do the disassembly.)

That looks a bit scary, but the power supply is out!

So it’s a commercial unit, a Vicor PFC MegaPAC.

Vicor PFC MegaPAC power supply unit from the Spectra-Physics J80 diode pump laser for the Millennia Prime.

These units are customisable, using a switch mode front-end to produce 300 V DC, which is then converted down to the required voltages using up to 8 DC-DC converter ModuPAC modules. These modules are easily removable.

Vicor ModuPAC modules used in the Spectra-Physics J80 diode pump laser for the Millennia Prime.

The unit is set up to use two high-current 3.3 V rails to run the two laser diodes, and a single 24 V rail to run the thermoelectric cooling system and other electronics. The “B” in the model name indicates they are a “current booster” module, and are connected in parallel to the equivalent non-B module. Note that the J40 system only has a single diode, so I would expect it to only have one 3.3 V rail, and perhaps one fewer of the 24 V boosters.

So the Vicor PFC MegaPAC can be bought new, but they are pretty expensive. We’re looking at over $4000 to replace this unit as configured, with at least a 6-week wait time. The DC-DC converter modules are probably fine though, and can be swapped into another front-end… and there’s a few options on eBay. We ended up getting one shipped from the US for just over $300 (yes, about a third of that was shipping costs). The DC converters swapped over fine and a quick check with a multimeter indicates it’s working OK and no longer tripping the circuit breakers.

So here’s the reassembly (the disassembly process is just the reverse of this). Bolt the power supply back into the chassis from the side and bottom.

The Vicor PFC MegaPAC is bolted into the J80 frame from the side and underneath.

Attach the DC terminals and the voltage trim pot connectors (the small Molex plugs with red and black wires).

DC connections to the Vicor PFC MegaPAC. Two 3.3 V rails and one 24 V rail. The bus bars connect the booster modules to the matching master modules.

Screw in the mounting bracket for the diode driver circuitry onto the top of the power supply.

Mounting bracket is screwed onto the top of the power supply.

Mount the diode driver circuit boards and plug in the connectors at the back. The black foam is to seal this chamber to direct airflow through the power supply and heatsinks on the diode driver boards. Try not to destroy it during disassembly!

The two diode driver modules of the J80. The J40 would just have one of these.

Connect the high-current 3.3 V lines and diodes to the driver boards. Screw in the ground connection to the power supply, and plug in the connector on the left (this is the connection to the logic board to independently switch the 3.3 V rails on or off).

3.3 V and diode connections to the driver boards.

Fit the rear fan assembly using the nuts on the bottom, then re-attach the back panel. The fibre optic cables are armoured, but be careful here and don’t twist or kink them.

Back panel and fan assembly fitted to the J80.

The logic board is then fitted on top of the diode driver boards. Connect the various Molex plugs.

Logic board fitted to the J80.

Note that the rear panel DB-15 connector and the black wires (bottom-right and right side of the above photo, top-right and top of below photo) are actually attached to the front panel. The DB-15 needs to be unscrewed from the rear panel during disassembly.

Logic board fitted to the J80, showing the single-board computer sub-board and 24 V DC-DC power supply module.

As an aside, you can see the single-board computer and 24 V power converter here. That cylinder on the right is a PS/2 keyboard socket. We’ll resist the urge to try hacking it…

Reattach the front panel and connectors to the power switch/power supply, LCD and indicator diodes. The red switch part of the key lock pops out of the lock assembly.

Front panel connections to the J80.

Now put on the top panel, plug it in and fire it up. Yes, it is now working perfectly again!
