Delay Calibration – Overview Vertical

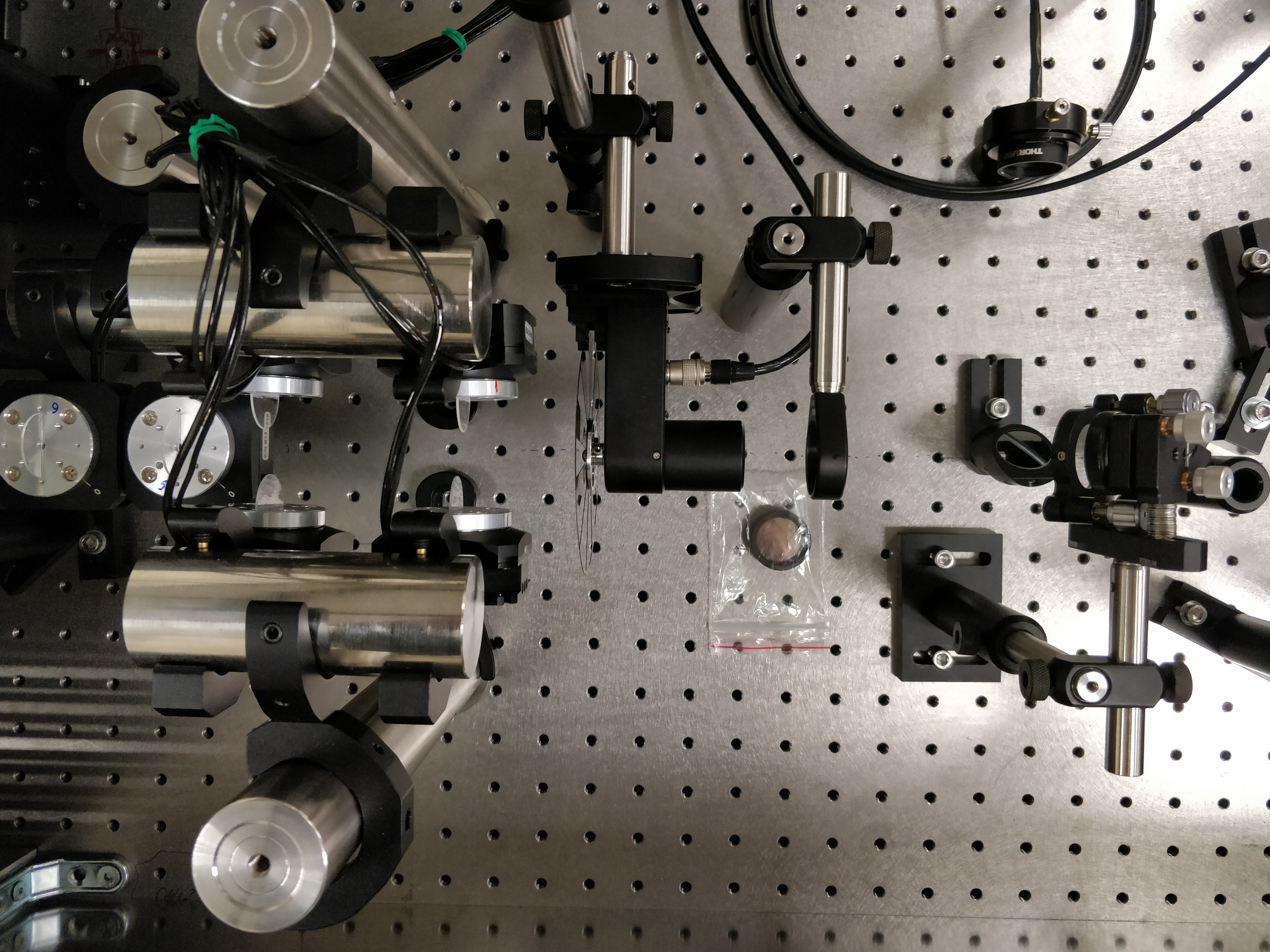

Overview of back end of interferometer used for delay calibration, in the vertical configuration. The two vertical spots are interfered with the mirror/beamsplitter combination on the right, directed downwards to the mirror and then the fibre-optic input shown in the top right, which feeds the spectrograph and camera.
